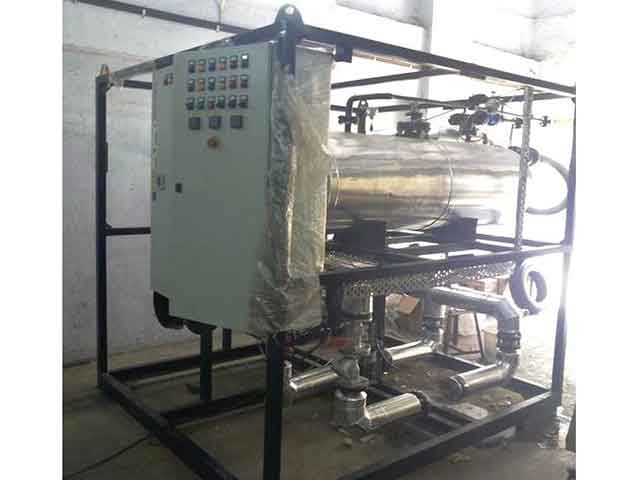

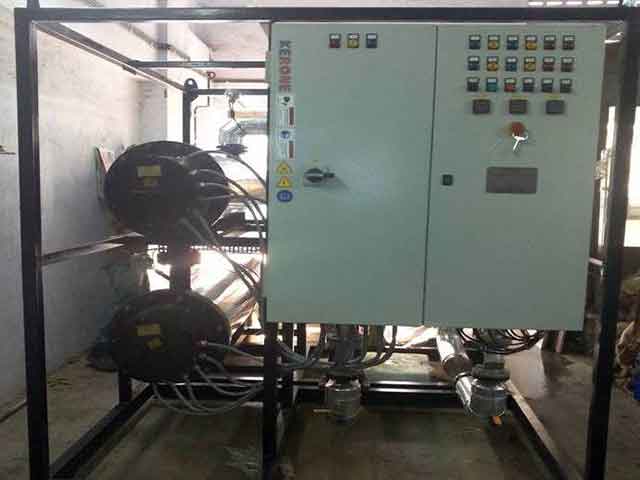

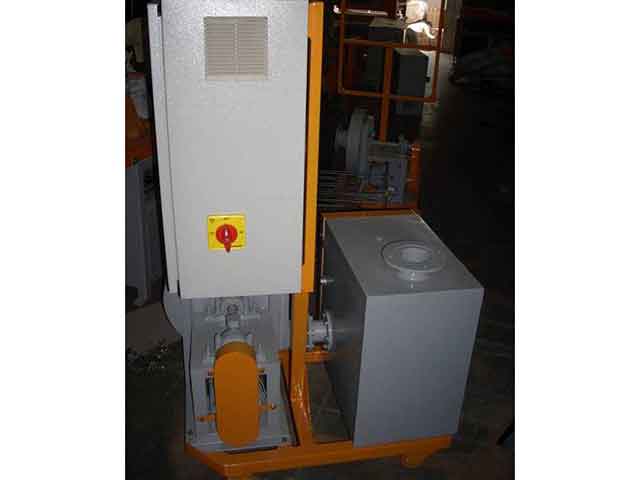

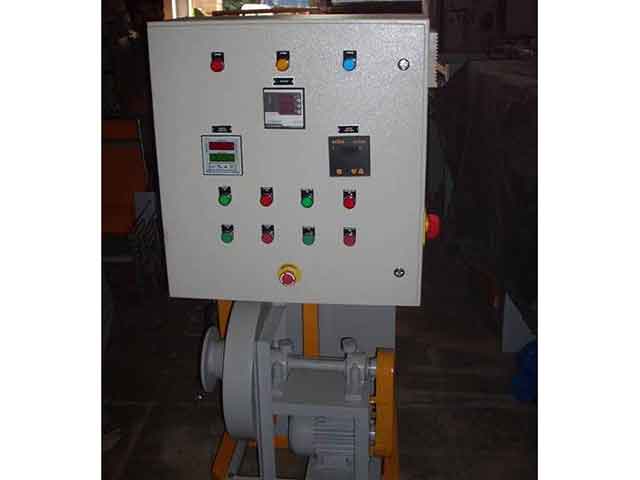

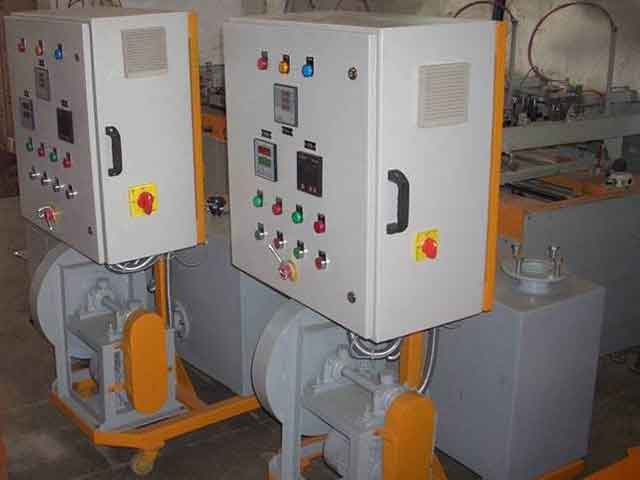

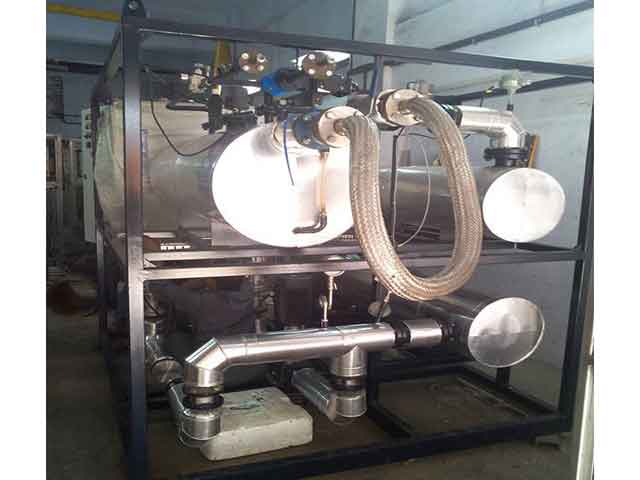

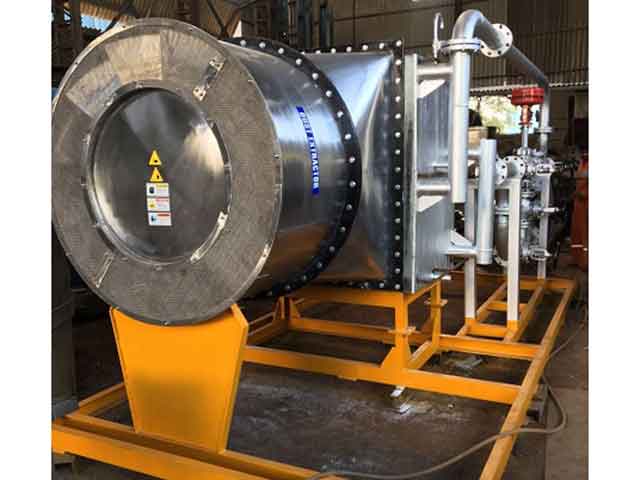

HOT AIR GENERATOR

A fully automatic multi pass counter current Hot Air Generator consist of stainless steel shell type integral combustion chamber accommodated in multi M.S. shell. The cold air is inserted by a suitable capacity blower fan in first pass, absorbs heat from flue gas passage and accordingly both hot flue gas and cold air travel in opposite direction in the passage which ultimately transfers 90% heat to cold air and delivers hot air from hot air outlet hole.

The system functions fully automatic on temperature sensing device installed at hot air outlet which ON-OFF the burner at pre-set temperature. the system is a package type unit, fixed on common base frame.

Application

This equipment is suitable for supplying dry air which keeps the power equipments’ inner parts from moisture in the maintenance of transformer, reactor and other big power facilities. Maintenance staff will not be short of oxygen working inside the equipment. It is more reliable, economic, convenient and safer than nitrogen.

Technical Features:

Item Parameter Model Unit (I) (II) (III) (IV)
Technical Parameters Flow
Working Pressure
Pressure Drop
Noise
Working Power
Total Power
Length
Width
Height
Diameter
Weight		 M3/H
Mpa
Mpa
dB(A)
KW
KW
cm
cm
cm
DN
Kg		 50
0.6~0.8
0.05
70
380V-50Hz
12
215
155
230
32
900		 100
0.6~0.8
0.05
70
380V-50Hz
19
215
155
230
40
980		 150
0.6~0.8
0.05
70
380V-50Hz
22
230
165
230
50
1030		 200
0.6~0.8
0.05
70
380V-50Hz
26
230
165
230
50
1050
After Treatment Index Discharge Pressure
Dew Point
Particle
Oil Content in air outlet		 Mpa
°C
um
ppm		 0.02~0.03
-50°C ~ -70°C
0.01
0.01		 0.02~0.03
-50°C ~ -70°C
0.01
0.01		 0.02~0.03
-50°C ~ -70°C
0.01
0.01		 0.02~0.03
-50°C ~ -70°C
0.01
0.01
