CYCLONE SEPARATORS

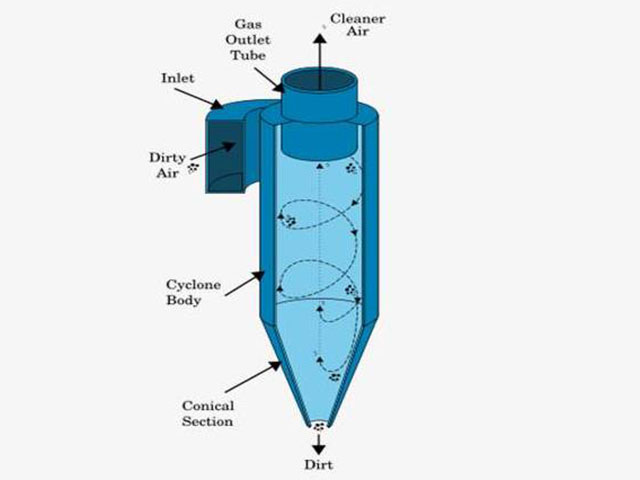

KERONE is having expertise in manufacturing of various types and capacity of cyclone separators, a cyclone separator is a unit that helps in separating the solids from the air, gas and liquids without need of any filtering unit. The cyclone separator operates on the principle of centrifugal force, typical operating steps are:

    Steps :-

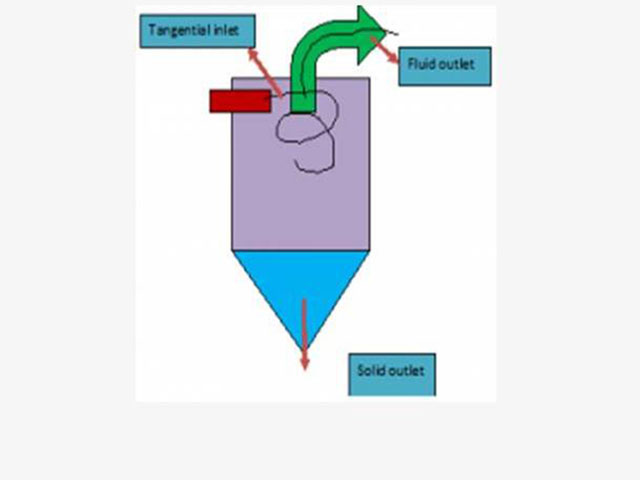

  • The suspensions of a solid gas usually air is introduced tangentially at a very high velocity so that rotary movement takes place within the vessel.
  • The fluid is removed from the central out let at the top.
  • The rotary flow within the cyclone separator causes the particles to be acted on by centrifugal force.
  • The solids are thrown out to the walls, there after it falls to the conical base and discharged out through solids outlet .
