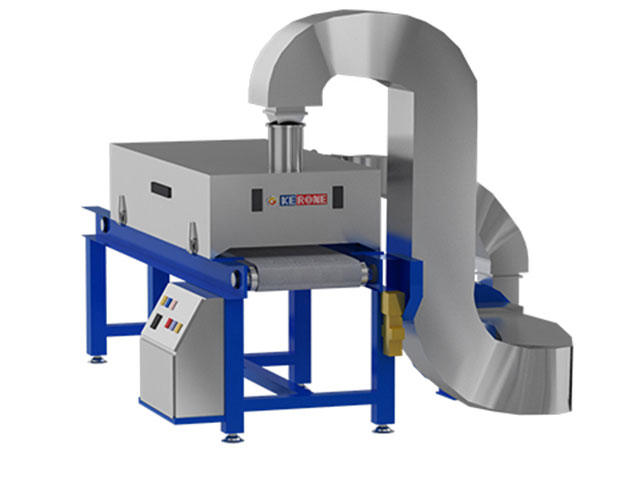

IR DRYER

We at KERONE design, manufacture and export across world various Infrared dryers (IR Dryers) having customized specification to fit into your drying process requirement, Infrared dryers (IR Dryers) are designed with the superior quality Infrared (IR) radiator with digital control electronics, Infrared Dryer (IR Dryer) is more suitable for the temperature sensitive and material with high surface radiation.

Since the Infrared dryer (IR dryer) heat/dries the surfaced of material at very faster rate it becomes more suitable for drying of paint on the surface, screen printing machines. Infrared dryers (IR dryers) obstruct the development of a skin or blisters on the surface and accelerate the drying of the paint, this results in a shining surface quality.

    General Features:

  • After the dryer has been turned off, the blowers and belt will continue to run for five minutes to shut down automatically after cooling of heat chamber.
  • Conveyor Driven by a reliable, heavy-duty, variable-speed AC motor with imported variable speed drive and gear box.
  • Air-cooled electrical control cabinet insures long life of electrical components Conveyor System.
  • Conveyor belt is made of imported antistatic heat-resistant, Teflon-coated fiberglass coating.
  • Infrared dryers (IR dryers) are compact in size, hence it takes lesser floor area.
  • Infrared Dryers (IR dryers) are having digital keypad with digital display.
  • Infrared dryers are having superior Air Handling arrangement.
  • Separate dedicated blowers for circulation & exhaust Control Center
  • Forced airflow speed up drying/curing process.
  • High-volume circulation blower reduces energy costs.
  • Degradation of solvents by oxidation
  • Rubber lining rollers for belt
  • Minimum belt speed: 0.8 mtr per minute
  • Max belt Speed : 15 Mtr/ Min.
