PNEUMATIC/ FLASH DRYER

Providing quality and cost effective microwave based industrial dryers (#microwavedryer) irrespective of size and complexity.

Drying is inseparable part of processing in chemical and pharmaceutical, food and dairy, polymer and ceramic, biotechnology, pulp and paper, agricultural, wood industries and many others. However the process of drying is demanding enormous energy and in many cases leading to emission of carbon dioxide and hazardous gases.

At Kerone, we provide modern day drying equipment with high thermal efficiency and advanced emission handling techniques. We as having over 42 years’ experience in providing several type of drying solution for various applications. Kerone has specialization in providing the Flash dryer also known as pneumatic dryer, which are designed as built to get fitted for specific industrial need.

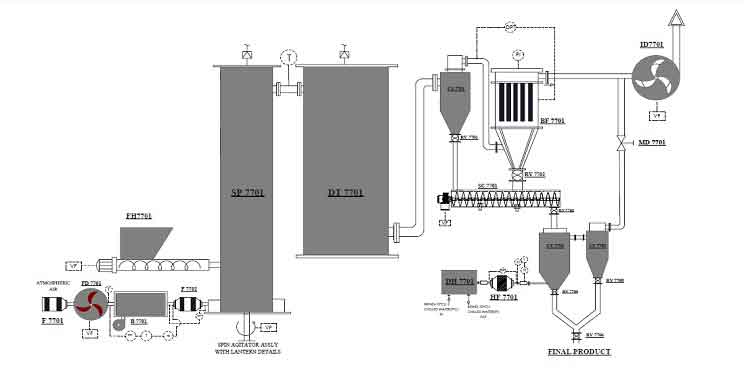

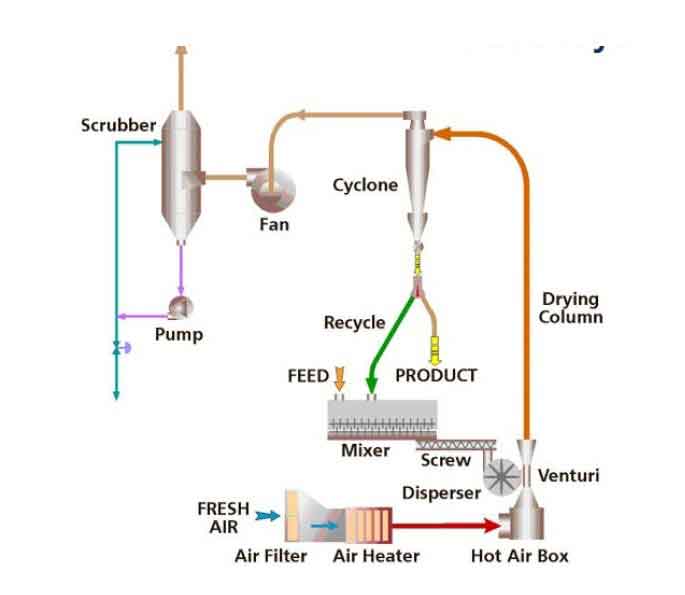

Pneumatic/ Flash dryers are direct drying units and are known as convective dryers. In pneumatic flash drying system particulate solids to be dried travels through the drying duct along with hot air and it get dried during transport in a hot gas stream. The pne- umatic flash dryer system consist of below components:1) Gas Heater, 2) Wet Material Feeder, 3) Drying Duct, 4) Separator, 5) Exhaust Fan, and 6) Dried Product Collector.

The material to be dried is fed into hog air/gas stream, the stream flows up the drying tube. The gases travel within the stream with velocity higher than the velocity of largest particle. The flash dryer are usually suitable for the removal of external moisture as the contact time between the hot air/gas stream and particle are for very short time. The Dried material and air/gas stream both are collected in separator unit, separator arrangement help to disperse the dried material from the gas stream. It must comply with the regulations for pollution control. For this purpose cyclone dust separators, fabric filters, electrostatic precipitators, wet scrubbers, and fabric filters are used.

Kerone helps its clients for selection of best pneumatic dryer that helps in getting highest efficiency and lesser drying time. The basic flash dryer design requires to take care of following: 1) Heat Balance 2) Mass Balance 3) Momentum Balance, and 4) Determining Heat and mass balance. While designing at Kerone we take utmost caution in design of the whole drying system, care must be taken of the gas-heating unit, the material feed section, the particle separation section, and the product collection system.

    Features

  • Height adjustment for heating panel should be parallel to the pallet
  • Timer, controller
  • Remote start pulse
  • Cooling fans with high volume, pressure
  • Auto, manual switches
  • Digital control panel
  • Caster wheels (brake wheels 2 No) nylon wheels
  • Distance between pallets to floor lever app
  • Height deviation up to 250 mm from pallet
  • All wiring, ducks on the portable system would be nicely done
pneumatic-flash-dryer

    Application of Pneumatic Flash dryer:

    Pneumatic Flash dryer are suitable of the following industries:

  • Agriculture and Animal Feeds
  • Paper & Wood and etc.
  • Pharmaceutical
  • Ceramic
  • Chemical
  • Mining
  • Food
pneumatic-flash-dryer

Pneumatic Flash dryer are commonly used for the drying of following materials:

  • Drying of Calcium Carbonate And Phosphate
  • Drying of Ammonium Sulfate And Phosphate
  • Drying of Copper
  • Drying of Sulfate
  • Drying of Dicalcium Phosphate
  • Drying of Boric And Adipic Acids
  • Drying of Antibiotics
  • Drying of Blood Clot
  • Drying of Bonemeal
  • Drying of Bread Crumbs
  • Drying of Cornstarch
  • Drying of Corn Gluten
  • Drying of Casein
  • Drying of Gravy Powder
  • Drying of Soup Powder
  • Drying of Vegetable Protein
  • Drying of Spent Tea
  • Drying of Soup Powder
  • Drying of Vegetable Protein
  • Drying of Spent Tea
  • Drying of Wheat Starch
  • Drying of Soybean Protein
  • Drying of Meat Residue
  • Drying of Flour
  • Drying of Magnesium Sulfate
  • Drying of Magnesium Carbonate
  • Drying of Plastic And Polymer Industries
  • Drying of Silica Gel Catalyst
  • Drying of Minerals
  • Drying of Cement
  • Drying of Aniline Dyes
  • Drying of Blowing Agents
  • Drying of Chlorinated
  • Drying of Rubber
  • Drying of Coal Dust
  • Drying of Copper Oxide
  • Drying of Gypsum
  • Drying of Iron Oxide
pneumatic-flash-dryer pneumatic-flash-dryer
